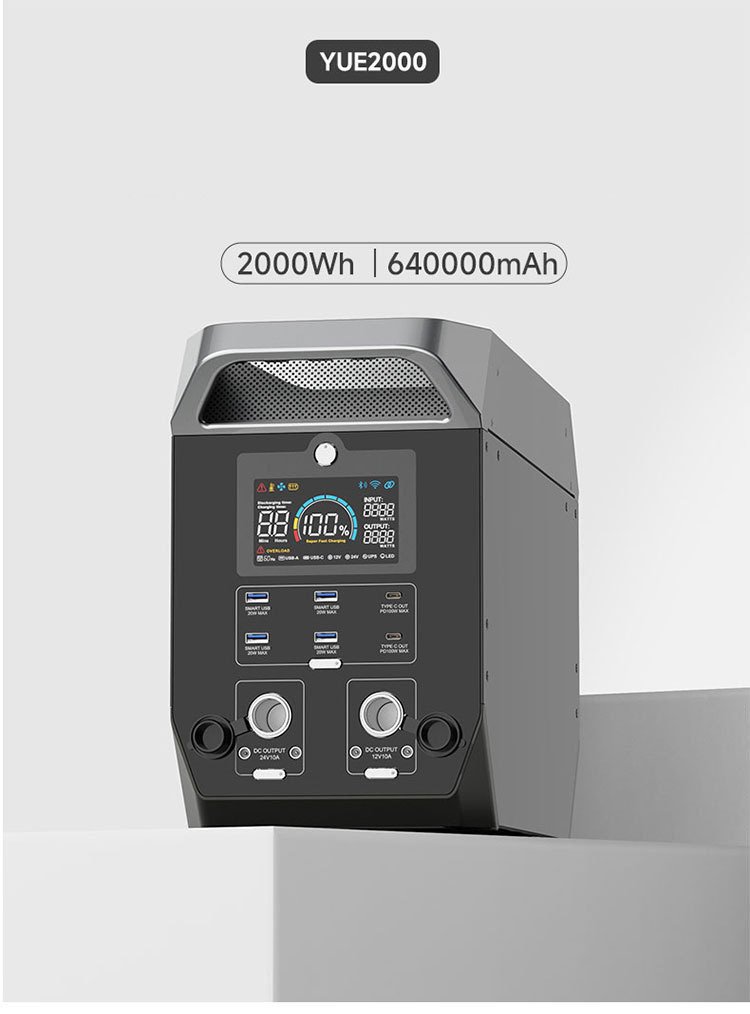

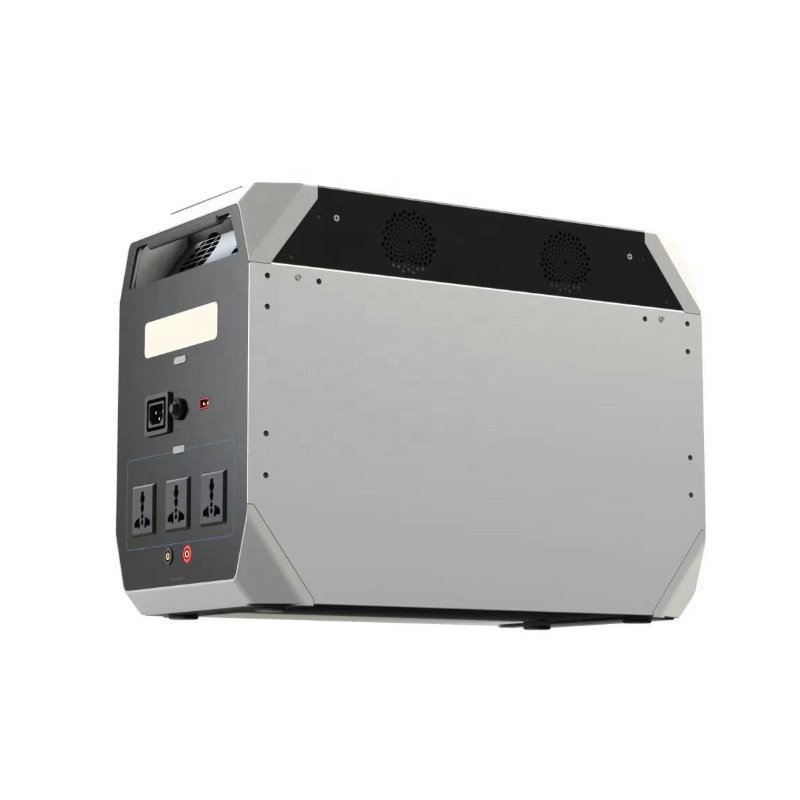

200v 2000W 60Hz Aluminum Alloy Outdoor Mobile Power Supply

Product information:

Shell material: aluminum alloy
Output parameter: 2000W

Battery voltage: 200V

Battery type: 16-string lithium iron phosphate battery
Type of product: yuan, outdoor electricity

-UPS function:
10ms UPS fast switching;
-AC inverter output:.
Up to 2000 watts;
-DC output:
USB fast charging *2 Type-C outputs 100 watts *2; Type USB a4 * 18w = 72w
12V cigarette plug output 100 watts, 24V cigarette plug output 100 watts.
-DC charging:
Solar charging input (12V-85V) is 120W, and other DC power supplies are connected to this socket to charge the machine.
-AC charging:
Up to 1000 watts:
-battery pack:
Rated voltage 55.2V, 16-string lithium iron phosphate battery, 80A
-BMS sleep current:
The output of BMS module is cut off, and the sleep current is less than 200uA: when the protection board is in a static state (no communication, no current, no balance
And overvoltage protection. ) After 1 minute’s delay, it enters the dormant state, and the protection board only reduces the frequency of detecting voltage and current and its own power consumption. according to
Key operation causes internal communication, and charging and discharging can automatically exit the sleep mode.

-Environmental requirements
1. Ambient temperature: -20’C ~+40C; 40-60 degree derating, or internal over-temperature protection.
2. Storage temperature:-30-40
3. Relative humidity: 5% ~ 90%;
4. Atmospheric pressure: 86kPa~106 kPa;
-BMS protection board is allowed to work normally under the following conditions:
1. Ambient temperature: -30C ~+75C;
2. Storage temperature:-5-40
3. Relative humidity: 5% ~ 90%;
4. Atmospheric pressure: 86kPa~106 kPa;
5. AC power+total DC isolated power supply board: the working temperature is 20-40 degrees, and if it is greater than 40 degrees, the power will be reduced.

Packing list:

1*  Mobile power supply+adapter+manual
